Exporting to test results from any Step

Abstract

You can export test results from any Step using the Export test results to the Test reports Step. Alternatively, you could configure your own Script Step to export the files.

Bitrise allows you to view all your test results in a convenient way. By default, five Steps are supported:

Xcode Test for iOS
Android Unit Test
iOS Device Testing
Virtual Device Testing for Android
Flutter Test

To export the test results generated by any other Step to the Deploy to Bitrise.io Step, you have two options:

We recommend using our Export test results to the Test reports Step: this Step locates the test results based on your inputs. However, this Step cannot export screenshots or other images.
You can configure your own custom Script Step that creates and exports the necessary files. If you need screenshots or other images, you need to export both the test results and the images in the same Script Step.

Using the Export test results to the Test reports Step

You can use the Export test results to the Test reports Step to make sure your test results appear on the Tests tab, even if you use Steps that don’t automatically export their results.

With the correct configuration, the Step finds the test results in your app’s repository, and puts them in the export directory.

Screenshots and other images

The Step can only export test results, in either .xcresult or JUnit XML format. If your test results are in an .xcresult file, screenshots generated as part of the test are included and exported to the Tests tab.

If you use the JUnit XML format, you need to export screenshots and other images using a Script Step: Exporting screenshots and other images to Test Reports. In this case, the test results themselves must be exported using the same Script Step. You cannot export screenshots and test results in separate Steps!

Log in to Bitrise and select Bitrise CI on the left, then select your project.
Click the Workflows button on the main page.
Add the Export test results to the Test reports Step to your Workflow after the Step that runs your tests.
In the The name of the test input, set the name of the test run.
In the Path where custom test results reside input, set the path where your test results can be found.

We recommend setting a folder here, though you can also set a specific filepath. The default value is the source directory of your app. Example patterns:
- If your app’s root directory is app: app/build/test-results/testDemoDebugUnitTest/
- If your test results are within an app folder but app is not the root directory: ./app/build/test-results/testDemoDebugUnitTest/
In the Test result search pattern input, set a pattern that matches your test result file.

This search pattern is used to search every file and folder of the path that was set in the Path where custom test results reside input.

If there is more than one match, the Step will export the first match with a warning in the logs. If you set a specific filepath in the previous input, just set * here.

Example patterns:
- Matching all files within the base path: *
- Matching all files within a given directory of the base path: */build/test-results/testDemoDebugUnitTest/*
In the Step’s test result directory input, make sure the path is correct.

Do NOT modify this input’s value: this is the folder where the Deploy to Bitrise.io Step will look for the test results to export them. It should be set to the $BITRISE_TEST_RESULT_DIR Env Var.
Make sure you have a Deploy to Bitrise.io Step in your Workflow.

If your tests generate attachments, make sure the Step is of version 2.19.x or newer.

Using custom scripts to export test results

You can use your own scripts in a Script Step to export your test results. You just need to make sure that:

Your test results are in a JUnit XML format.
You place the results in the $BITRISE_TEST_RESULT_DIR, which is an Environment Variable pointing to the correct path.
The results of each test run should be in its own sub-directory. You place a test-info.json file in each sub-directory to correspond to the test run.

The `test-info.json` file

The test-info.json file must have the name of the test run defined in it. Each test run should have its own test-info.json file. The value of test-name will appear as the name of the test run on the results page.

  // Test Name ... { "test-name":"My first test" }

Here’s an example script to export your test results:

#!/bin/env bash
set -ex

# Creating a sub-directory for the test run within the BITRISE_TEST_RESULT_DIR:

test_run_dir="$BITRISE_TEST_RESULT_DIR/result_dir_1"
mkdir "$test_run_dir"

# Exporting the JUnit XML test report:

cp "MY/TEST/REPORT/XML/FILE/PATH.xml" "$test_run_dir/UnitTest.xml"

# Creating the test-info.json file with the name of the test run defined:

echo '{"test-name":"MY TEST RUN NAME"}' >> "$test_run_dir/test-info.json"

If all goes well, you should be able to see your test results: Deploying and viewing test results.

Exporting screenshots and other images to Test Reports

The Export test results to Test Reports Step can only export test result files to the Deploy to Bitrise.io Step which supports two formats for results:

The .xcresult file for iOS apps.
A JUnit XML file for any app.

In .xcresult files, screenshots generated during the test run are part of the test result. As such, they will be exported to the Tests tab.

If you use the JUnit XML format and want to export screenshots or other images, you cannot use the Export test results to Test Reports Step.

To add a screenshot to the reports, depending on the results format:

.xcresult

JUnit XML

Open your Workflow.
Add the Export test results to Test Reports to the Step after the Step that generates your test results.

For more information on how to configure the Step, see Using the Export test results to the Test reports Step.

Open your Workflow.
Add a Script Step after the Step that generates your test results.
Create a custom script to export both the result and the screenshots.

The script to export both must be in the same Script Step, and you must have a test-info.json file with the necessary information about the test runs: Using custom scripts to export test results.
Use the script to place the images in the $BITRISE_TEST_RESULT_DIR folder.

Associating images with test runs

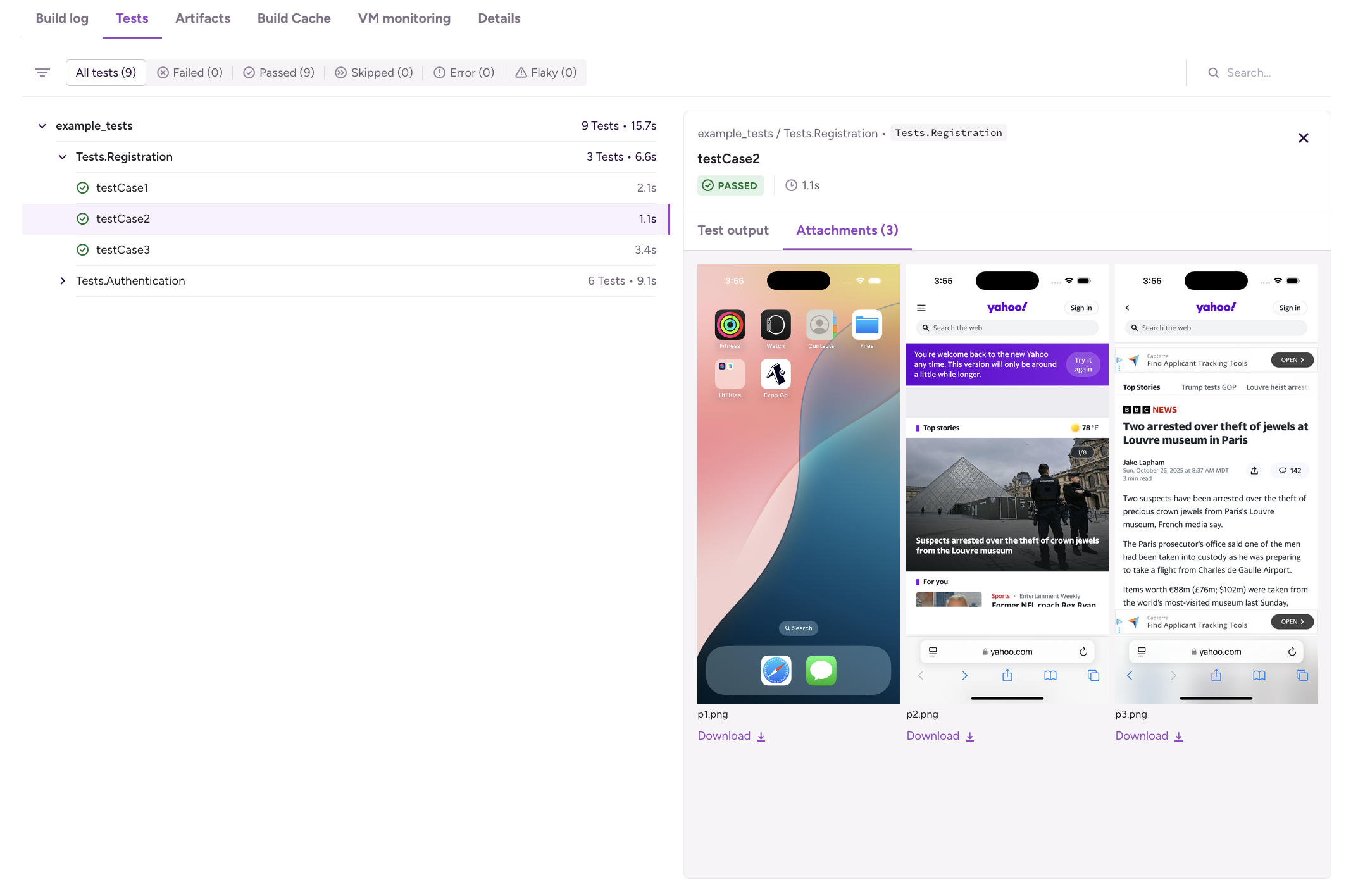

You can associate an image with a specific test run by placing the image in the directory of that test run. In that case, the image will appear under all test suits of the given test run.
Example 1. Script to export an image
```
#!/bin/env bash
set -ex

# Creating a sub-directory for the test run within the BITRISE_TEST_RESULT_DIR:

test_run_dir="$BITRISE_TEST_RESULT_DIR/result_dir_1"
mkdir "$test_run_dir"

# copying the image:

cp "MY/TEST/SCREENSHOTS/screenshot.png" "$test_run_dir/screenshot.png"
```
